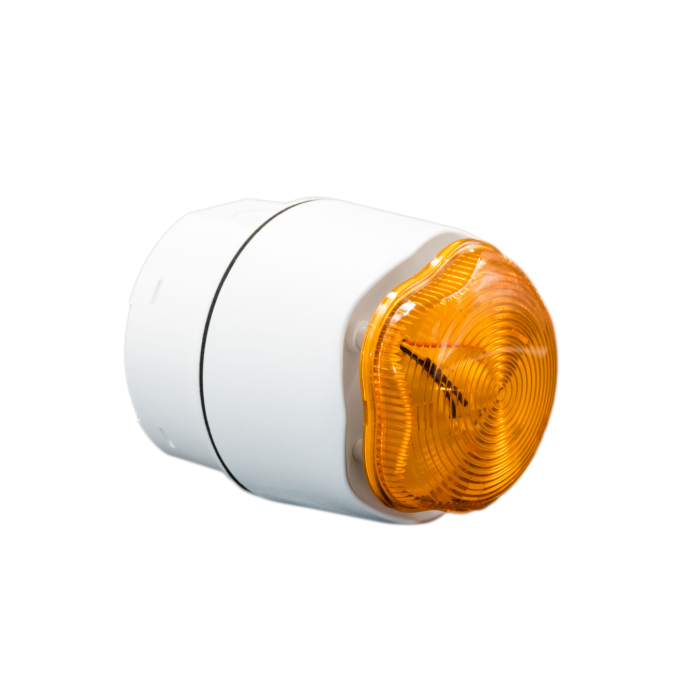

Our Sounder Alarm Beacons are most commonly used with our gas detection systems and can work as a visual and audible alarm to alert the clients of any fault conditions relating to the gas supply in the plant room. They are usually situated outside of the boiler room so clients can easily see or hear the alarm without having to enter the plant room.
| Specification | |||
|---|---|---|---|
| Electrical | Mechanical / Environmental | ||
| Termination | 1 x 8 way terminal block. Screw terminals for 0.28mm² to 2.5mm² wire conductor | Case Material | ABS |
| EN54-3 Voltage Range | 24VDC (20VDC to 28VDC) | Environment Category | Type A |
| Operating Voltage Range | 9VDC to 30VDC* | IP Rating* | Shallow Base: IP45 Deep Base: IP66 |
| Tone Current Consumption | See Sound output table | Operating Temperature | -20°C to +55°C |
| Tone Synchronisation | Synchronised start | IP Compliance | Units meet minimum requirements of IP21C (Shallow Base) & IP33C (Deep Base) in accordance with EN54-3 |
| Flash Rate | 1 per second | ||
| Flash Current Consumption | 90mA @ 12VDC / 40mA @ 24VDC | ||
