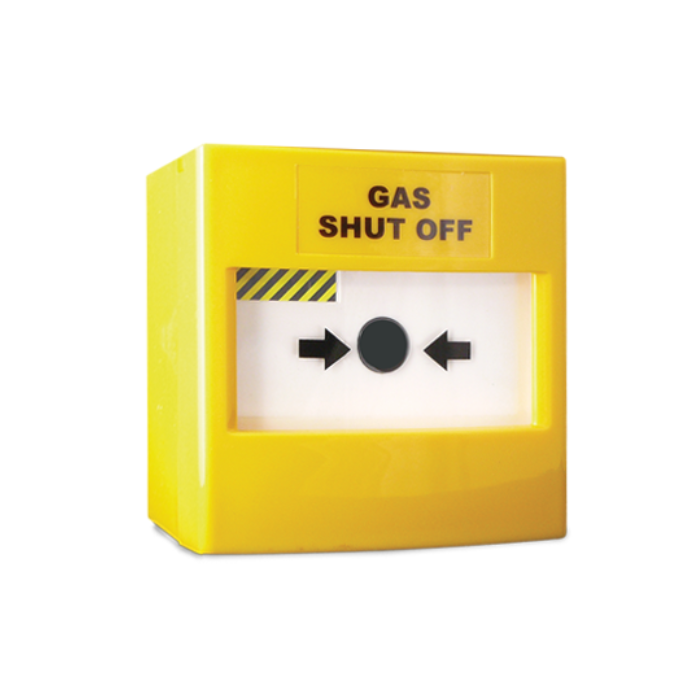

Emergency Stop Button (Perspex Screen)

SKU: EM-Perspex Category:
  • Key resettable Perspex screen
  • Shrouded fascia means it can’t be accidentally knocked.
  • “ Gas Shut Off “ label on the fascia.
  • Activation Indicator when the emergency stop button has been pressed.
  • Easy Installation
  • Covered by S&S Northern 3 year warranty.
Add to quote

Description

We only supply the highest quality emergency stop buttons for increased longevity and reliability. The E stop button uses a resettable Perspex screen to enable the customer to press multiple times without having to replace the button. When the Perspex screen has been pressed inwards an activation indicator drops into view at the top of the window after the ‘Reset’ has been operated. The unit is then simply reset with a key and is ready for re-use straight away.

Current Rating (All Series)
Electrical Mechanical / Mounting
Low Current Rating* 1-100 mA, 5 – 12V DC Housing and Mounting Box Material Polycarbonate
Current Rating 0.1 Amps, 125 – 250V AC Electrical Contact Material Silver plated brass
Current Rating 3 Amps, 12 – 24V DC Installation Terminal Conductor Size 0.5mm – 2.5mm
Current Rating 3 Amps, 125 – 250V AC Operating Temperature -20°C to +65°C
Colours Red, Yellow, Green, Blue & White Mounting Flush or surface with back box
