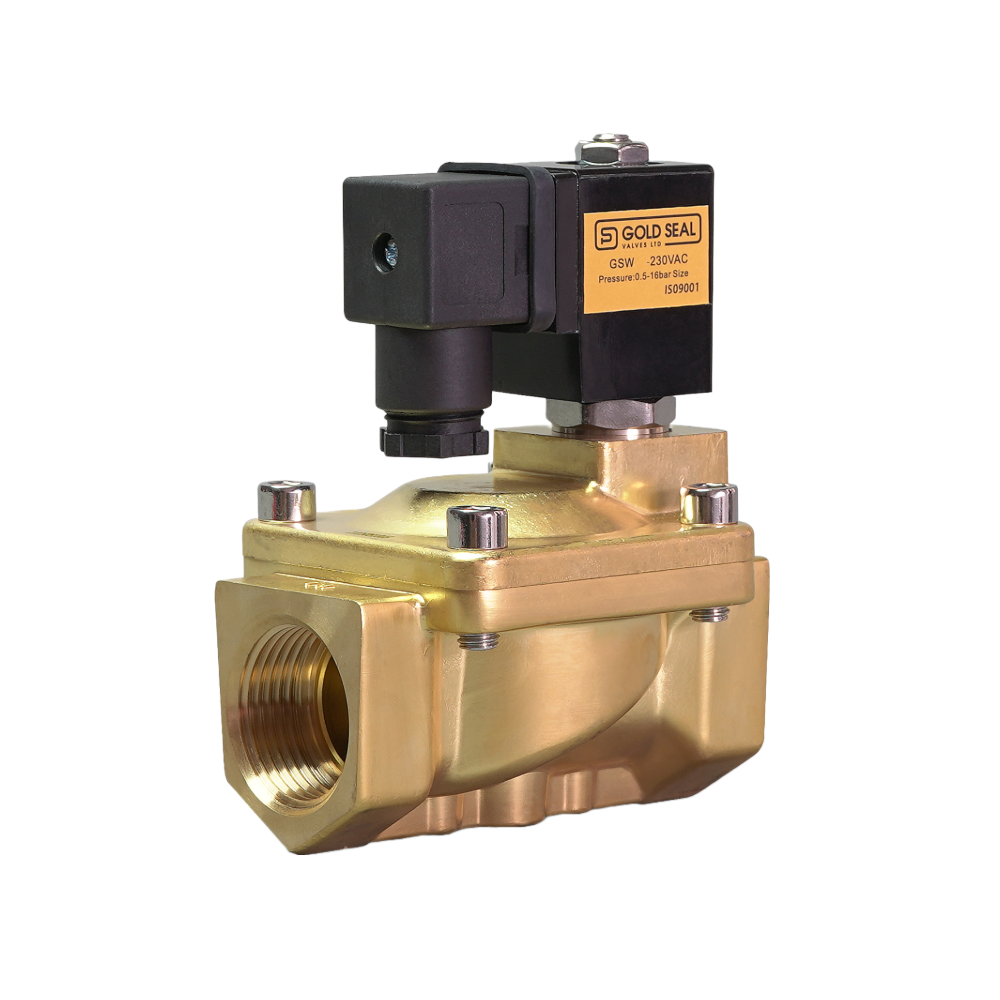

Goldseal water solenoid valves are normally closed (N/C) and constructed with a durable brass body, two-way inlet and outlet ports. Available in 24VAC, 24VDC or 230VAC powered versions. EPDM diapghram and lead free brass, suitable for potable water control.
| 24VAC / 24VDC GSW SERIES | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TECHNICAL SPECIFICATION | |||||||||||
| Port Size | Orifice (mm) | CV Value | Min. Pressure Diff. (Bar) | Max. Working Pressure (Bar) | Max. Temp (°C) | Voltage | VA | Partcode | Dimensions (AxBxH mm) | ||
| 1/2″ | 13 | 4.5 | 0.5 | 16 | 120 | 24VAC | 13 | GSW13-24VAC | 66x48x112 | ||
| 3/4″ | 20 | 7.6 | 0.5 | 16 | 120 | 24VDC | 13 | GSW20-24VDC | 75x58x118 | ||
| 1″ | 25 | 12 | 0.5 | 16 | 120 | 24VDC | 13 | GSW25-24VDC | 96x70x131 | ||
| 1 1/4″ | 35 | 22 | 0.5 | 16 | 120 | 24VAC | 13 | GSW32-24VAC | 131x96x146 | ||
| 1 1/2″ | 40 | 30 | 0.5 | 16 | 120 | 24VDC | 13 | GSW40-24VDC | 131x96x146 | ||
| 2″ | 50 | 48 | 0.5 | 16 | 120 | 24VDC | 13 | GSW50-24VDC | 165x120x167 | ||
| 230VAC GSW SERIES | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TECHNICAL SPECIFICATION | |||||||||
| Port Size | Orifice (mm) | CV Value | Min. Pressure Diff. (Bar) | Max. Working Pressure (Bar) | Max. Temp (°C) | VA | Partcode | Dimensions (AxBxH mm) | |
| 1/2″ | 13 | 4.5 | 0.5 | 16 | 120 | 13 | GSW13-230VAC | 66x48x112 | |
| 3/4″ | 20 | 7.6 | 0.5 | 16 | 120 | 13 | GSW20-230VAC | 75x58x118 | |
| 1″ | 25 | 12 | 0.5 | 16 | 120 | 13 | GSW25-230VAC | 96x70x131 | |
| 1 1/4″ | 35 | 22 | 0.5 | 16 | 120 | 13 | GSW32-230VAC | 131x96x146 | |
| 1 1/2″ | 40 | 30 | 0.5 | 16 | 120 | 13 | GSW40-230VAC | 131x96x146 | |
| 2″ | 50 | 48 | 0.5 | 16 | 120 | 13 | GSW50-230VAC | 165x120x167 | |
