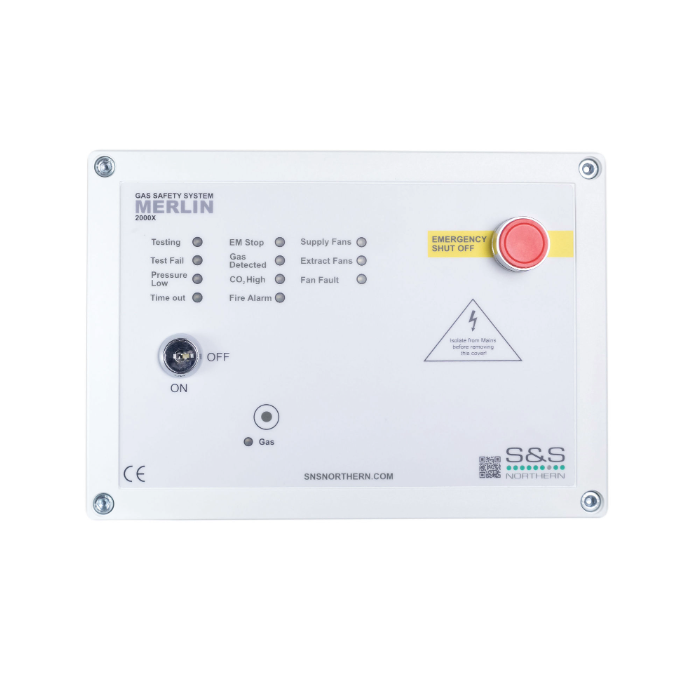

Merlin 2000X Panel

SKU: 2000X Category: Tag:
  • Allows Compliance with BS6173 for commercial kitchens.
  • Internal LCD Display of the fan current for simple installation.
  • Set high and low fan current range.
  • Clear LED display for system indications.
  • Gas proving for when kitchen appliances are not fitted with flame failure devices.
  • BMS Normally Closed or Normally Open and Common.
  • Low Pressure monitoring for incoming gas supply.
  • Interlocking with fans using either Air PD switches or external fan current sensors to interlock up to 4 fans.
  • Easy Installation.
  • Will accept remote emergency knock-off buttons.
  • Covered by S&S Northern Ltd 3 year warranty.
Add to quote

Description

The Merlin 2000X is the ultimate gas pressure proving & ventilation interlock system, specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when the kitchen appliances do not have flame failure devices fitted, therefore gas proving is a requirement.

The Merlin 2000X system uses two unique built in current monitors which displays the exact fan current, in order to interlock with the ventilation with precision accuracy. The system is compatible with both current monitors and air pressure differential switches in order to interlock with up to 4 fans.

(incl. Gas Pressure Transducer)

2000X SPECIFICATION
GENERAL DISPLAY & DIMENSIONS
Model 2000X Display 1.8” Screen TFT (located inside)
Overall Dimensions (H x W x D) 180 x 255 x 77mm
POWER VALVES & MONITORING
Power Input Voltage 100-240Vac Gas Valve Output Voltage 100-240Vac
BMS Max Output 3A Single Phase AC Current Monitor Calibration Range 0.1 – 18 Amps
Single Phase AC Current Monitor Display 0 – 22 Amps Power Consumption 4.7 W (Panel), 20W max (fully loaded)
Internal Fuse 3.15A
ENVIRONMENTAL ALARM & SENSOR
Operating Temperature & RH 0 – 50°C (32 – 122°F), 30-85% RH, Non-Condensing Audible Alarm Buzzer 65 dB (300mm distance, quiet conditions)
Pressure Sensor Operating Pressure 0 – 100 mbar
