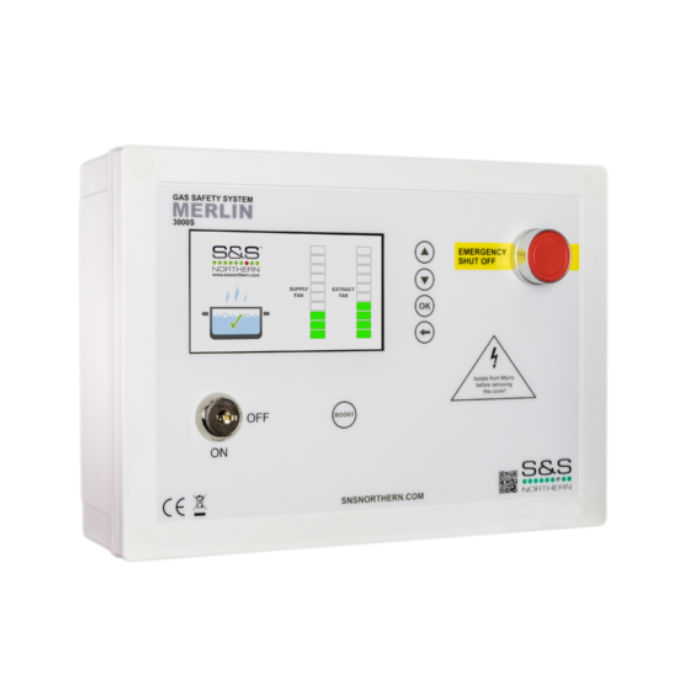

The Merlin 3000S energy saving control system has been specifically designed for NEW and RETROFIT store applications, providing automated control over the ventilation system by adjusting exhaust and kitchen HVAC inlet air in response to the presence and level of cooking activity. Based on the temperature inside the exhaust hoods, the Merlin 3000S maximizes kitchen ventilation energy efficiency and reduces energy waste while improving kitchen comfort.
| TECHNICAL SPECIFICATION | |||
|---|---|---|---|
| GENERAL | USER INTERFACE | ||
| Model | Merlin 3000S | Display | 4.3” TFT Touch Screen |
| Size (H x W x D) | 7.08 x 10.03 x 3” (180 x 255 x 77 mm) | Screen Brightness | Adjustable 0–100% |
| Housing Material | ABS Polylac – PA765 (UL94 V-1) | Audible Alarm | >60dB @ 1m (Quiet conditions) |
| Mounting | Indoor – Wall Mounted | Language | English |
| Weight | 1.7kg (3.74lb) | ||
| POWER SUPPLY | EQUIPMENT | ||
| Power Consumption | 6.9W max | Overvoltage Category | II |
| AC Power Rating | 100–240V~ 50/60Hz | Pollution Degree | 2 |
| Maximum Current | 28mA | Equipment Class | 2 |
| Extract/Supply Fan Output | 0.5A Max | ||
| Internal Fuse | T3.15A L250V | ||
| ENVIRONMENTAL | WIRING | ||
| Operating | -10 ~ 50°C / 14 ~ 122°F, 30–80% RH (non-condensing) | 100–240V AC | #18–12 AWG (Tinned Copper) |
| Storage | -25 ~ 50°C / -13 ~ 122°F, up to 95% RH (non-condensing) | Other Wiring | #18–14 AWG (Tinned Copper) |
| Altitude Rating | 2000m | Field Wiring | Use wires rated ≥75°C (167°F) |
| APPROVALS | |||
| Electromagnetic Compatibility | EN 61326-1:2013 | ||
| Electrical Safety | IEC BS EN 61010-1 | ||
