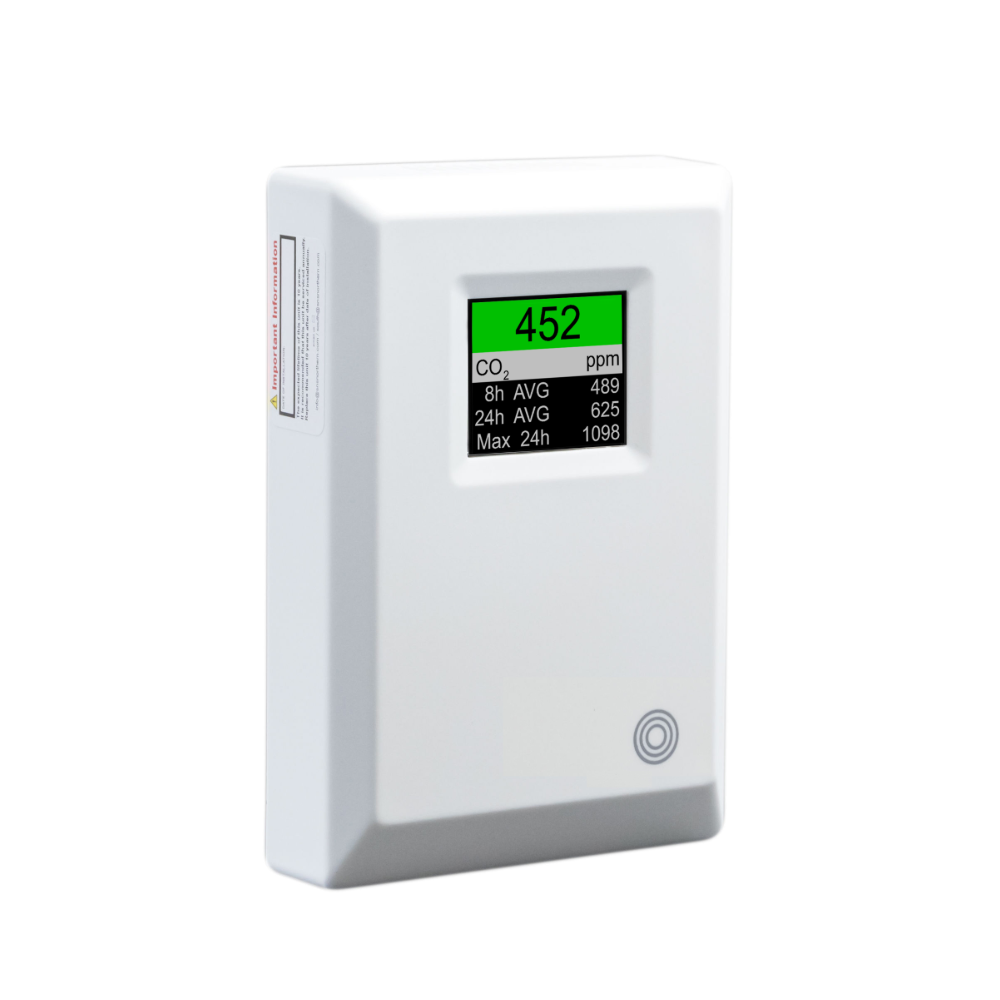

The Merlin CO2 AVG Monitor has a TFT display to show the user a clear and precise reading of the CO2 level in the room and average CO2 level over 24 & 8 hours. The monitor also provides statistics for the highest reading over a 24 hour period along with a colour system indicating the air quality in the area.
Click here for details on the Scottish Technical Handbook CO2 monitoring
| CO2 SENSOR SPECIFICATIONS | |
|---|---|
| SPECIFICATION | VALUE |
| Power Supply | 100-240VAC, 50-60Hz (Max 1.7 VA without load) |
| Target Gas Sensor Type | NDIR: Intelligent Infrared CO2 Module |
| Digital Display Type | Thin Film Transistor (TFT) |
| Typical Sensor Measuring Range | 400 ~ 5000 ppm |
| Accuracy @ 25°C (77°F) | ± 50ppm ± 3% reading value |
| CO2 Signal Update | Every 3 seconds (Average/24hr Max Signal Update Every 10 minutes) |
| CO2 Warm Up Time | 1 minute / 60 seconds |
| Yellow Screen Indicator | Moderate CO2 Air Quality: 1000-1299 ppm |
| Red Screen Indicator | Poor CO2 Air Quality: 1300+ ppm |
| Operating Conditions | -32 ~ 122°F (0 ~ 50°C), 0 ~ 95% RH, Non-Condensing |
| Storage Conditions | -32 ~ 122°F (0 ~ 50°C) |
| Net Weight | 202.6g / 7.15oz |
| Dimensions (W x H x D) | 95 x 140 x 30 mm / 3.7 x 5.5 x 1.2 inch |
