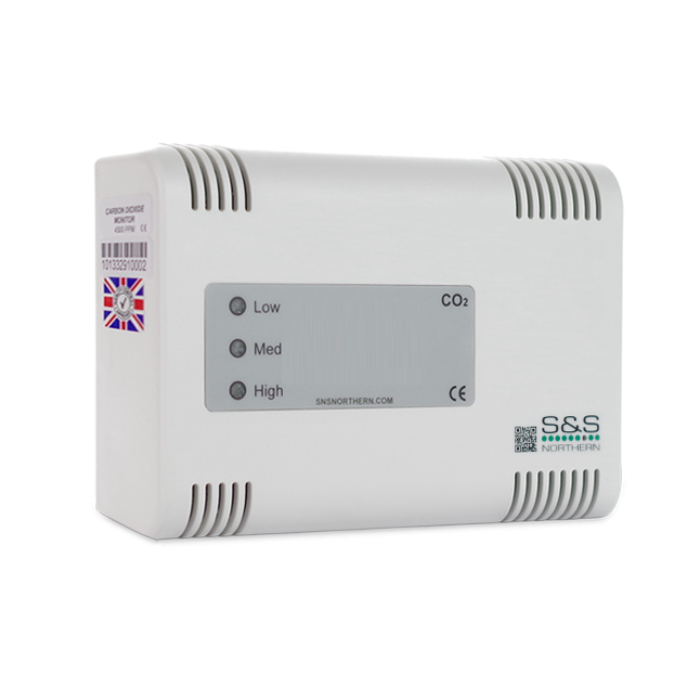

The Merlin CO2-C1 detector has a traffic light colour system indicating the carbon dioxide levels in the area.
This detector can be used independently or can work in conjunction with one of our Merlin gas control systems. If the CO2 reaches alarm level the Merlin CO2-C1 detector would illuminate ‘High’ and also send a signal to the Merlin gas control system which will in turn close the gas solenoid valve.
| CO2-C1 SENSOR SPECIFICATION | |||
|---|---|---|---|
| Power Supply | Sensor | ||
| Voltage | 230VAC, 50-60Hz (Max 2VA) | Type | Carbon Dioxide: Non-Dispersive Infrared Detector (NDIR) |
| Logic & Calibration | Measuring Range & Accuracy | ||
| ABC Logic | Self Calibration | Range | 0-5000ppm (Resolution: 1ppm) |
| Accuracy @ 25°C | ±100ppm +6% Reading | Warm Up Time | 1 Minute |
| Relay Output / Alarm Models | CO2 Alarm Settings | ||
| Model | 1500ppm | Relay Output | 230VAC 1A, 30VDC 2A; >1500ppm ON / <1450ppm OFF |
| Model | 2800ppm | Relay Output | 230VAC 1A, 30VDC 2A; >2800ppm ON / <2750ppm OFF |
| Model | 4500ppm | Relay Output | 230VAC 1A, 30VDC 2A; >4500ppm ON / <4450ppm OFF |
| Environmental | Physical | ||
| Operating Conditions | -0~50°C (-32~122°F); 0~95%RH, non-condensing | Net Weight | 190g approx. |
| Storage Conditions | -40~70°C (-40~158°F); 0~95%RH, non-condensing | Dimensions (W x H x D) | 135 x 95 x 38mm |
| Installation | Standard Wall Mountable | ||
