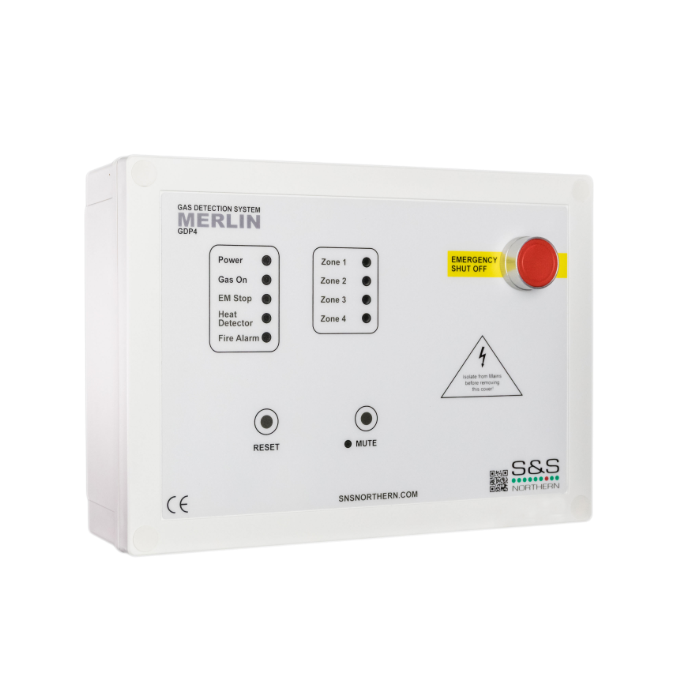

The Merlin GDP4 is a multi-area, multi gas detection panel that can be used with up to four gas detectors in a number of combinations and be combined with fusible links to detect gases such as carbon monoxide, LPG or natural gas along with heat sources. This ensures that the Merlin GDP4 is a highly robust, highly capable, highly reliable gas detection panel capable for deployment in a wide variety of areas from shop floors to industrial boiler houses.
| Specification | |||
|---|---|---|---|
| General | Electrical | ||
| Product | GDP4 Gas Detector Controller | Max. Power Consumption | 20W Max (Full Load) |
| Use | Indoor, Safe Areas (not to be used in potentially explosive atmospheres) | Power Voltage Input Range | 100-240Vac |
| Indicators | LED | Gas Valve Output Range | 100-240Vac |
| Mounting | Wall Mounting | I/Os | 24VDC Outputs (Detector / Strobe or Sounder) |
| Switch Inputs | 3x Open/Close (EM Stop / Heat Sensor / Fire Panel) | ||
| BMS | Volt Free (Normally Closed / Common / Normally Open) 3A Max | ||
| Relay(s) | 2x 240VAC 10A (Latching Switch) | ||
| Terminal Wire Ratings | Copper 18AWG (0.75mm²) Min. × 29 screw terminals | ||
| Fuse | 3.15A | ||
| Construction | Environmental | ||
| Dimensions (H x W x D) | 180 x 255 x 77mm / 7.08 x 10.03 x 3” | Ingress Protection | IP65 (Pre-installation) |
| Unit Weight (Approx.) | 1.1kg / 38.8oz | Storage Conditions | Dry, Cool, Flat |
| Housing Material | Polylac – PA765 | Operating Conditions | -10 ~ 50°C / 14 ~ 122°F, 30 ~ 80% RH |
| Compliance | |||
| Certifications | CE / UKCA EN 61326-1 / BS EN IEC 61010-1 | ||
