Description

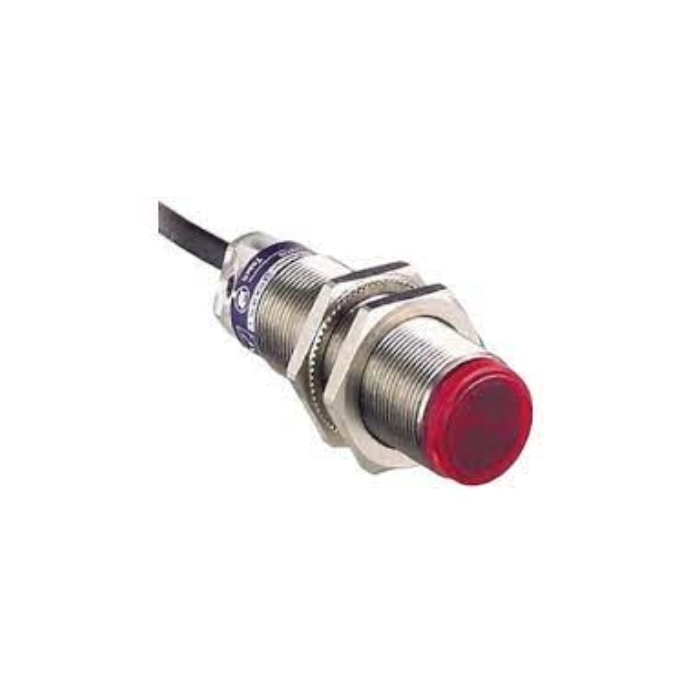

7m or 15m emitter & receiver for Merlin 3000s.
Optical Cable
| OPTICAL CABLE SPECIFICATION | |||
|---|---|---|---|
| MAIN | COMPLEMENTARY | ||
| Enclosure material | Nickel plated brass | Lens material | PMMA |
| Series name | General purpose single mode | Maximum sensing distance | 20 m thru beam |
| Electronic sensor type | Photo-electric sensor receiver | Output type | Solid state |
| Sensor name | XUB | Add-on output | Without |
| Sensor design | Cylindrical M18 | Wire insulation material | PvR |
| Detection system | Thru beam | Status LED | 1 LED (yellow) for output state |
| Material | Metal | [Us] rated supply voltage | 12…24 V DC (reverse polarity protected) |
| Line of sight type | Axial | Supply voltage limits | 10…36 V DC |
| Type of output signal | Discrete | Switching capacity | <= 100 mA (overload & short-circuit protected) |
| Supply circuit type | DC | Switching frequency | <= 500 Hz |
| Wiring technique | 3-wire | Voltage drop | 1.5 V (closed state) |
| Discrete output type | PNP | Current consumption | 35 mA (no-load) |
| Discrete output function | 1 NO | Delay first up | < 15 ms |
| Electrical connection | Cable | Delay response | < 1 ms |
| Cable length | 2 m | Delay recovery | < 1 ms |
| Product specific application | – | Setting-up | Without sensitivity adjustment |
| Emission | Infrared thru beam | Diameter | 18 mm |
| [Sn] nominal sensing distance | 15 m thru beam (requires transmitter XUB2BKSNL2T) | Length | 46 mm |
