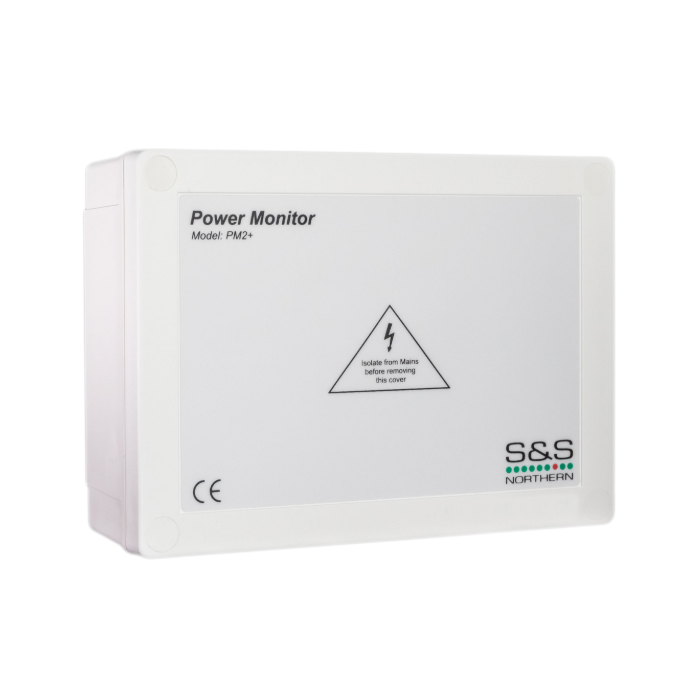

PM2+ Double Current Monitor

SKU: PM2+ Category: Tag:
  • Internal LCD Display of the fan current for simple installation.
  • Set high and low fan current range.
  • Reliable method of interlock, with no moving parts there is little to go wrong.
  • Can monitor 2 fans with running currents between 0.1A – 18A.
  • Can be used when pressure differential switches cannot be used e.g. wall-mounted fans.
  • Easy installation.
  • Covered by S&S Northern Ltd 3 year warranty.
Add to quote

Description

The Merlin PM2+ is a dual fan current monitor and is to be used in conjunction with the Merlin 1500S, CT1750, 2000S & 3000S Systems; it can be used as an alternative to an air pressure differential switch. The system uses a unique built in current monitor which displays the exact fan current, in order to interlock with the ventilation with precision accuracy.

PM2+ SPECIFICATION
General Power Supply
Model PM2+ Voltage 12-24VDC
Operating Temp Range 10-40°C Current Consumption 140mA @ 12VDC Max
Dimensions (mm) W 190 x H 140 x D 77 Power Consumption ~1.7W
Net Weight 0.58 kg Certification CE / RoHS
