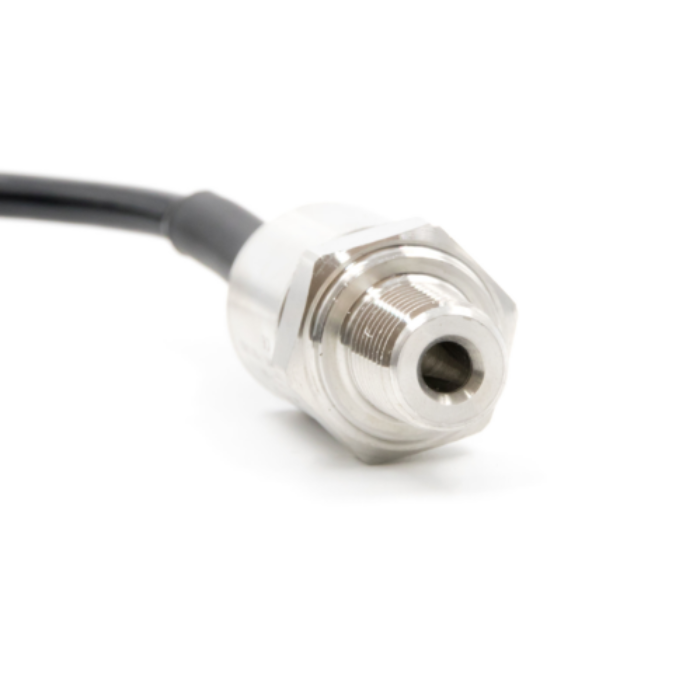

Pressure Transmitter
- 0-100mbar Pressure Range
- Pressure Gauge Type
| PRESSURE TRANSMITTER SPECIFICATION | |||
|---|---|---|---|
| STANDARD RANGE | |||
| Pressure Type | Gauge Pressure | Pressure Range | 0-100 mbar |
| TECHNICAL INDEX | |||
| Signal Output | 0 ~ 5VDC | Signal Line | 3 Wire |
| Supply Voltage | 9~30VDC | Accuracy | ± 0.5% FS |
| Zero Drift | ± 0.02% FS/°C | Thermal Sensitivity Shift | ± 0.02% FS/°C |
| Long-term Stability (1 Year) | ± 0.01% FS | Frequency Response (-3dB) | 3.2 kHz |
| Compensated Temperature | -20 ~ +85°C | Working Temperature | -40 ~ +125°C |
| Storage Temperature | -40 ~ +125°C | Overload Pressure | 300% FS |
| Burst Pressure | 500% FS | Mechanical Vibration | ± 20 g |
| Impact (11ms) | 100 g | Environmental Protection | IP65 |
| Pressure Connection | BSPP ¼ or NPT ¼ | Approval | CE, RoHS |
