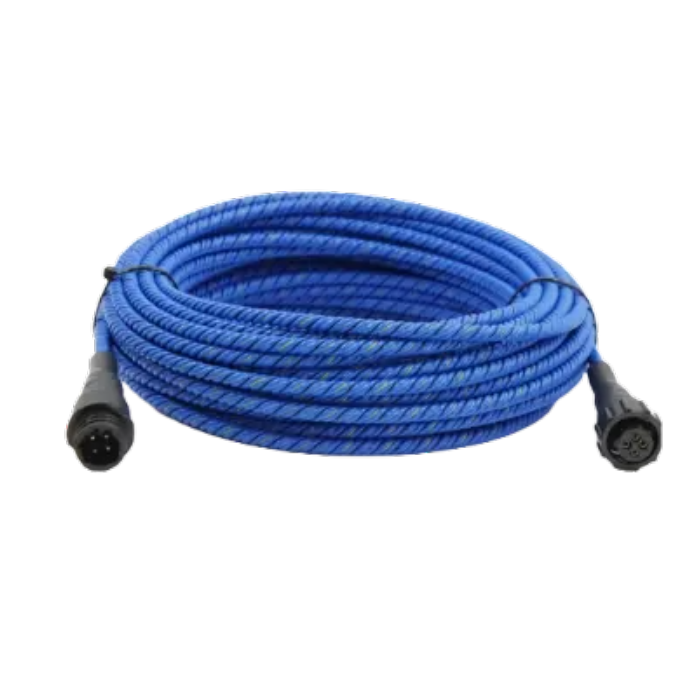

WLM Cable (2 Core)

SKU: WLMC Category:
  • Identifies water presence along its entire length
  • 2 core tape designed for water leak detection
  • The WLMC cable is compact yet robust, displaying high resistance to abrasion and corrosion
  • Features a sleek design that facilitates quick drying
  • Comes in pluggable lengths, available in various lengths
  • Custom lengths available upon request
  • Compatible with the S&S WLM
  • Not recommended for metal pipes – refer to WLMBC cable

Description

The WLMC 2 core sensing cables are capable of detecting the presence of water at any point along their length. When coupled with a WLM system, the cable swiftly identifies water intrusion and activates an alarm. The WLMC is offered in various lengths for specific coverage requirements.

Supplied with pre-installed plastic connectors that seamlessly plug together, the WLMC sensing cable is well-suited for a diverse range of applications, including data center
sub-floors, telecommunication rooms, HVAC equipment locations, electrical vaults, storage areas, tanks, and roofs. Its compact, lightweight, and flexible design ensures straightforward installation. Additionally, the smooth construction allows for a rapid drying process.

TECHNICAL SPECIFICATION
CABLE OPERATING ENVIRONMENT
Cable Diameter 6.35mm (nominal) Temperature 0° to 75°C
Sensing Cores 2 x 0.05mm² coated with conductive fluoropolymer Humidity 5% to 95% RH, non-condensing
Cut Through Resistance 9kg per 25mm maximum Altitude 4,500m maximum
Bend Radius 50mm minimum
Cable Weight 113g per 305mm (nominal)
