Name: Merlin Water Check Monitor
SKU: WCM
Availability: InStock

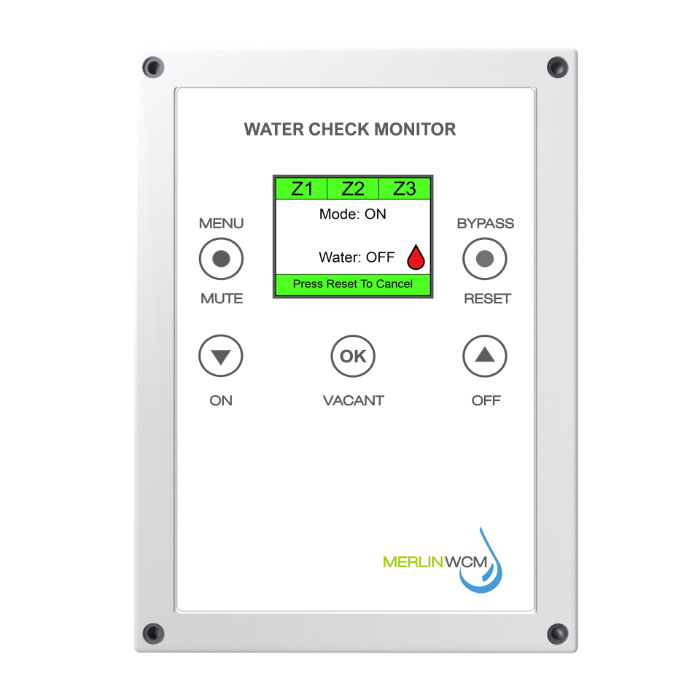

Merlin Water Check Monitor

Earns 2 Breeam WAT07 in-use credits
Combined flow monitoring & point leak detection
Automatic water shut off as standard
Various programmable settings dependent on occupancy
Automatic holiday mode protection
Audible & visual indication
Insurance tariffs can be significantly reduced if permanent water leak detection is installed – Aviva, Zurich, More Than and other insurance companies all recommend water leak detection for residential properties.
SMS & email alerting (with additional products)
Covered by 3 Year Warranty.

Description

The Merlin WaterCheck combines both water usage monitoring and point leak detection, and is designed specifically for residential properties and apartments. Achieves two BREEAM WAT07 In Use, and very popular with insurance companies, the Merlin Water Check monitors for continuous water flow within the property and can be used to highlight leaks when the property is both occupied and vacant, and control a valve to reduce any risk of water damages through the property.

For more information, please contact S&S Northern Ltd.

TECHNICAL SPECIFICATION
GENERAL		USER INTERFACE
Model	WCM – Water Check Monitor	Visual Indicators	Display – Water On / Leak / Water Flow
Size	(H x W x D) 151 x 111 x 50mm (5.95 x 4.37 x 1.97”)	Audible Buzzer	>60dB @1m (3.28ft). Quiet conditions
Mounting	Wall/Surface Mounted. Indoor use only	Buttons	Mute / Reset / Bypass / Vacant / Arrow adjustment / OK
Weight	320g (11.2 oz)
Max Length	Leak detection rope sensor 300M
POWER SUPPLY		EQUIPMENT
Power Consumption	1.2W Max	Overvoltage Category	II
Power Input #1	100-240V~ 50-60Hz	Pollution Degree	3 (Unit Only)
Internal Fuse	Resettable Fuse 2.5A @ 250Vac
ENVIRONMENTAL		APPROVALS
Operating Temperature	0 ~ 50°C / 32 ~ 122°F, 20 ~ 95% RH (non-condensing)	CE / UKCA	BS EN 61010-1 / BS EN 61326
